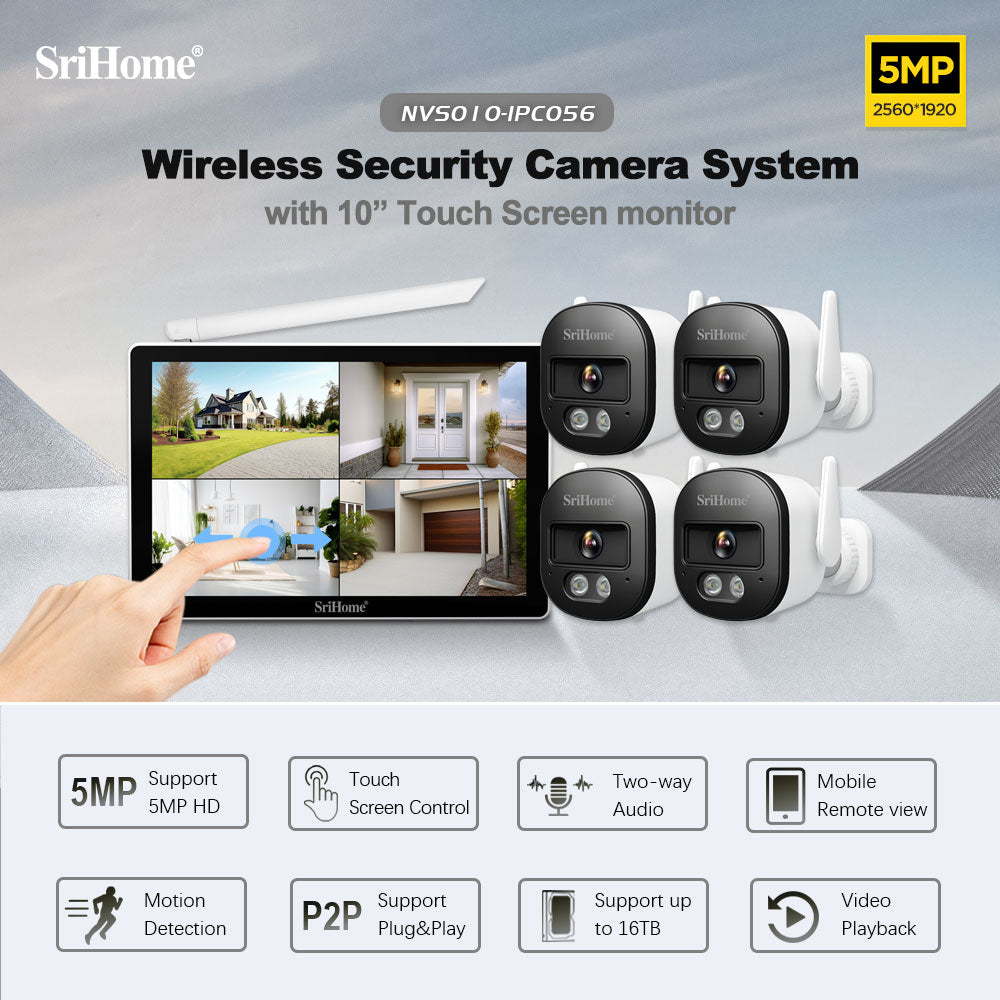

NVS010-IPC056 (5MP)

Highlights
1. No Messy Wiring! NVR and Camera are WiFi Transmission.
2. Plug & Play with no professional skill needed. Power on, and all camera pictures will be displayed on the screen!
3. (5MP) Camera provide 2K Video Resolution.
4. NVR max support up to 8CH and max support resolution is (5MP) 2K camera.
5. Support storage and playback of up to 16TB hard disk (2.5 inches SATA SSD / HDD)
6. Support for HDMI and VGA or MIPI screen output
7. Two-way voice, built-in omnidirectional microphone and speaker on both camera & NVR. Talk & Listen through the App or NVR host unit directly.
8. Night Vision. With Build-in IR Infra-Red, auto on IR when in dark mode and once motion detects, LED White Light is turned on to capture in color mode.

Package Included

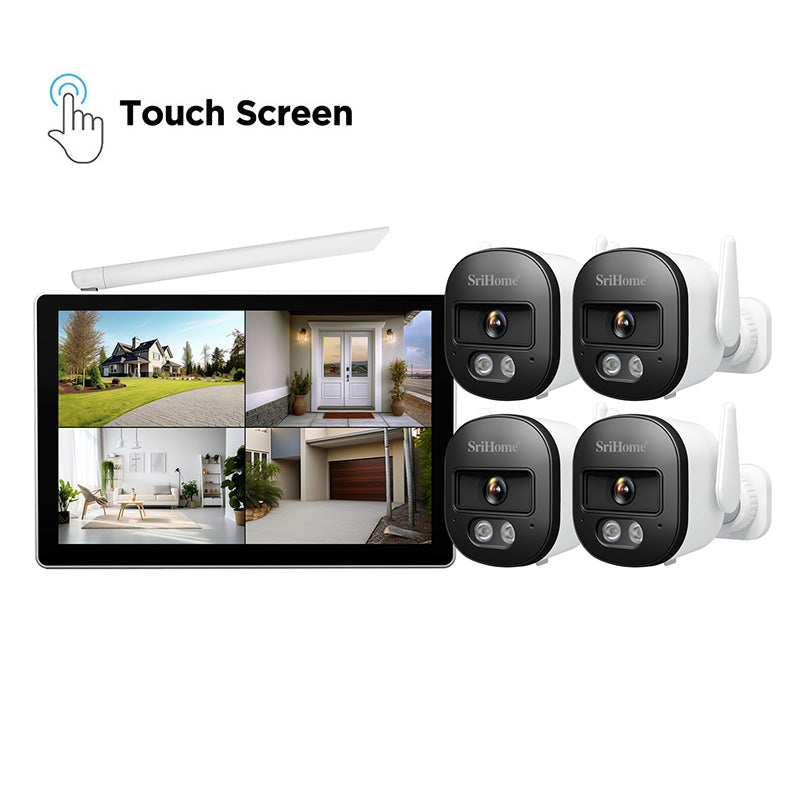

▶ 1x NVR WIFI 8CH Touch Screen, 4x Camera Wifi, 5x Power Adapter, 1x LAN Cable, 1x Mouse, Screw Packs.

NVR Touch Screen

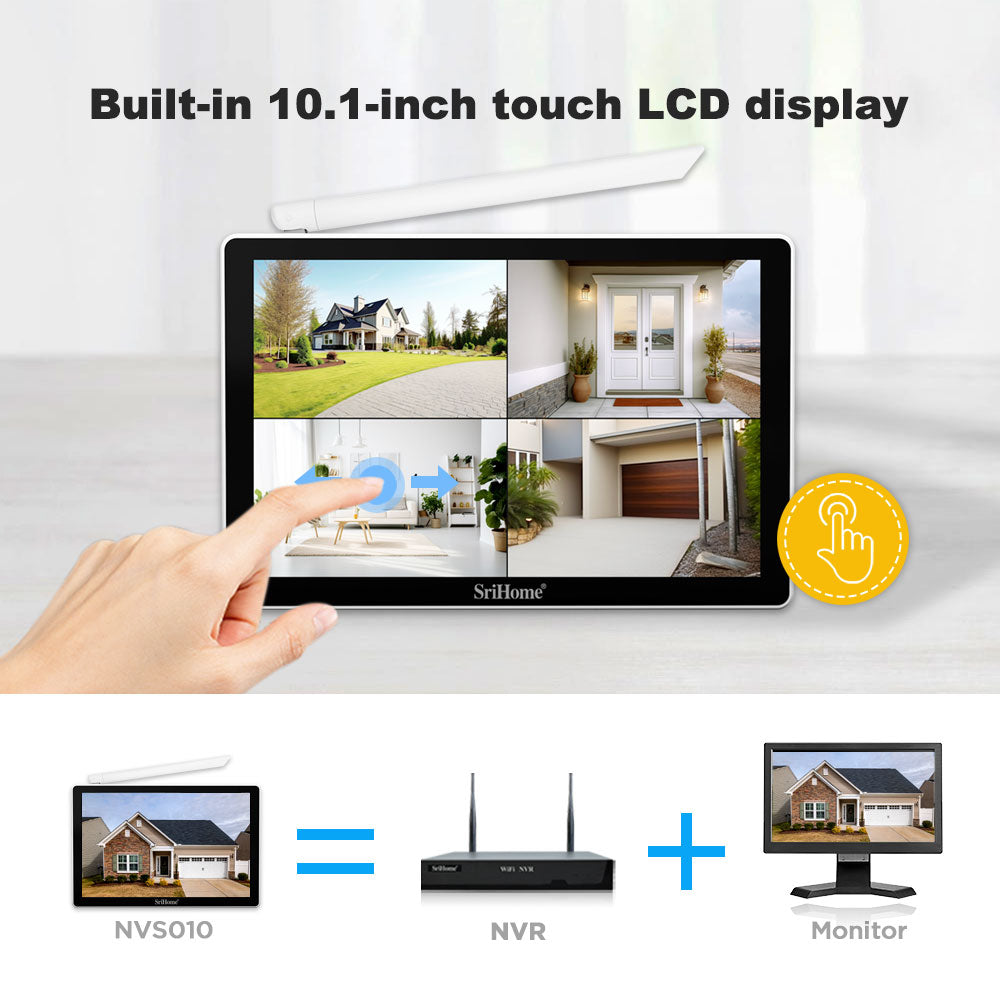

▶ Build-in 10.1 inch Touch Screen Monitor, Touch Control
▶ Build-in WiFi, enable wireless connection between camera and NVR through wifi technology
▶ Screen Display Resolution: 800xRGB (3) x 1280
▶ Video input: Max 8 CH
▶ Video output: 1 HDMI, 1 VGA
▶ Compression format: H265/H264
▶ Coding capability: 8x5M/25fps
▶ Decoding capability: 1x5M/25fps (main stream); 8xD1/25fps (auxiliary stream)
▶ Decoding format: H265; H.264

Audio (NVR)
▶ Audio: Bidirectional speech. Talk, Listen.
▶ Audio output: HDMI and 1 AUX audio with build-in speaker
▶ Decoding format: G.711U; AAC

Storage (NVR)
▶ Hard disk interface: 1 SATA interface (2.5-inch hard disk only), SSH & HDD
▶ Hard drive capacity: maximum support 16TB
▶ Attention: Hard disk is not included by default.

Recording & Playback (NVR)
▶ Recording mode: scheduled recording, alarm recording
▶ Playback mode: regular playback and APP playback
▶ Backup mode: general backup

Network Management (NVR)
▶ WiFi connection. plug & play.
▶ No Wiring, No Network Configuration, and it can be used when is on
▶ WiFi: 2.4Ghz, only for SriHome standard camera connection
▶ WAN: RJ45 wired connection
▶ Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.

Independent Networking (NVR)
▶ No Internet also can use
▶ The video recorder and the wireless camera form an independent network, and the video can be monitored without a router

Alarm Mode (NVR)
▶ Alarm mode: motion detection alarm, humanoid detection alarm
▶ Alarm reminder: APP push, alarm whistle

External Interface (NVR)
▶ Network interface: one RJ45 network interface
▶ USB interface: 1 USB2.0
▶ HDMI interface: 1
▶ VGA interface: 1
▶ Audio interface: 1 AUX audio output interface
▶ Power interface: 1 DC 12V 2A (5.5x2.1x10mm)

App (NVR)
▶ Support SriHome APP, IOS and Android remote access
▶ Support unlimited NVR system to use on one app.
▶ It had no limit on how many users you want to share the CCTV system.

PTZ Camera (5MP)
▶ Multi-core high-speed processor
▶ 1/3 inch, 5 million high-definition color CMOS sensor
▶ Compression format: H.265
▶ Lens parameters: Focal length: 4mm, 5 million pixels
▶ Viewing angle: D 110 H 80 V 58
▶ Resolution: 1920P (2560x1920), VGA(480x360)
▶ Frame frequency: 15 frames
▶ Automatic exposure: Automatic exposure white balance
▶ IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

IP66 Waterproof (Camera)
▶ Rainproof, Weatherproof. Suitable for both Indoor & Outdoor use.

Night Vision (Camera)
▶ Alarm mode: The default is black-and-white night vision. When a human figure is detected, it automatically turns on the white light and switches to full-color night vision
▶ White light mode: from 18:00~7:00, the white light can be switched on, the brightness can be adjusted, and the night vision is full color
▶ Infrared mode: White light is turned off and switched to normal night vision

Audio (Camera)
▶ Built-in microphone and speaker, supports two-way voice
▶ Protocol: G711

Video Recording (Camera)
▶ Mode: Plan video, alarm video
▶ Resolution: HD (1920P), SD (360P)
▶ Playback: Support remote video playback

Alarm Mode (Camera)
▶ Alarm: motion detection alarm, humanoid alarm
▶ Siren: Alarm whistle can be set
▶ Area detection: Supports customization of motion detection alarm areas to improve alarm accuracy

Wireless (Camera)
▶ Wireless: 2.4G (only connected to NVS001E/NVS010 NVR host)
▶ Network distribution mode: QR code network distribution, button network distribution

Other (Camera)
▶ Product type: plastic PVC, suitable for indoor and outdoor
▶ Installation Position: Ceiling, Wall
▶ Power adapter: USB5V 1A, type-c connector
▶ Working temperature: -10°C ~ 50°C
▶ Weight: Net weight 230 grams (actual weight shall prevail)
▶ Body size: 78*66*75mm (length x width x height)

Easy Setup With After-Sales Support
▶ Clear User Guide & Setup Video Included
▶ After Sales Support Through Live Chat & WhatsApp

Warranty
▶ 6 Months Warranty.
▶ warranty cover on NVR device, wifi camera.
▶ Accessories (Mouse, Power Adapter) and Postage Fees (both ways) are not covered by warranty.

What Is In The Box?
1️⃣ 1x NVR WIFI TOUCH SCREEN 8CH
2️⃣ 4x Camera WIFI
3️⃣ 5x Power Adapter
4️⃣ 1x Mouse
5️⃣ 1x Lan Cable
6️⃣ 1x Screws Pack
7️⃣ 1x Manual

.::: F.A.Q :::.
Q1. What is a WiFi NVR System?
A1. WiFi NVR (Network Video Recorder) CCTV system, is a video surveillance system that allows CCTV cameras to record video and audio digitally and store the data on a network storage device such as a hard disk.

Unlike DVR (Digital Video Recorder) systems that record analog video on tape or hard disk, NVR systems record digital video through the Internet Protocol (IP) network. IP cameras can be directly connected to the network and send video data to the NVR through the network.

NVR systems provide several advantages, such as higher video quality, advanced analytics features, the ability to record and monitor video remotely over the Internet, and the flexibility of setting up a larger system using multiple cameras.

Q2. What do I need to use the NVR system?
A2. The SriHome NVR system comes as a complete set and includes the NVR, cameras, mounting brackets, and power adapters. You only need to prepare a hard disk.

Q3. Is it hard to set up?
A3. Super easy. Simply connect the power to the NVR and all cameras, connect the HDMI cable from the NVR's HDMI port to your monitor, and power it on. All pictures will immediately be displayed on the screen.
