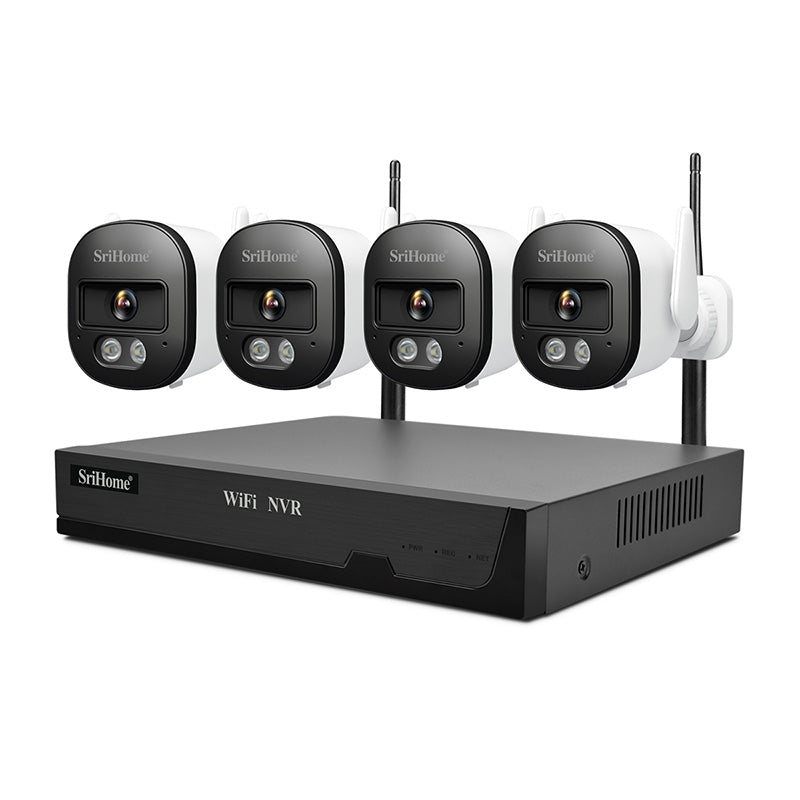

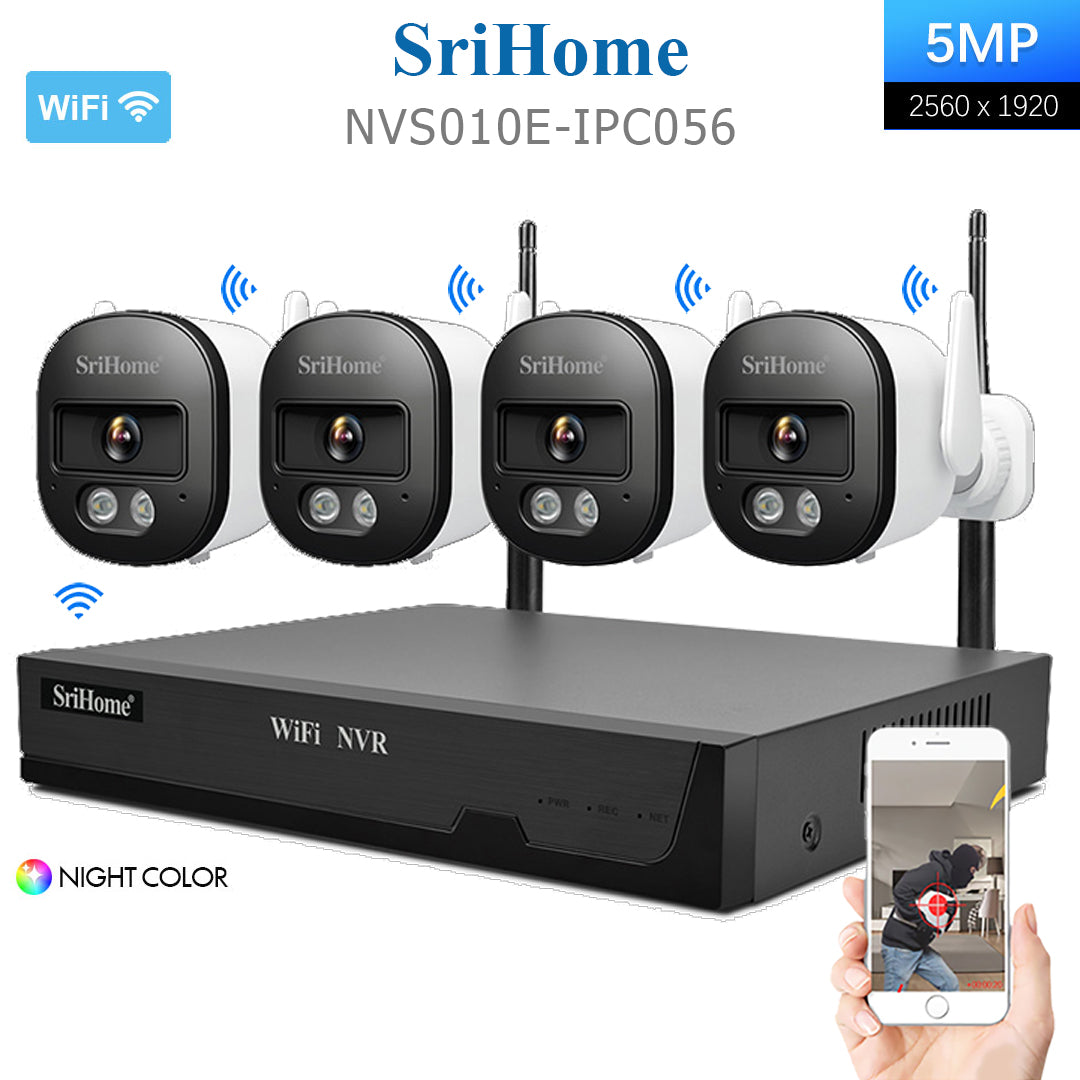

NVS001E-IPC056 (5MP)

NVR 8CH WiFi
▶ Model: NVS001E
▶ WiFi: Yes
▶ Video input: Max 8-Channel
▶ Video output: 1 HDMI, 1 VGA
▶ Compression format: H265/H264
▶ Coding capability: 8*5M/25fps
▶ Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream)
▶ Decoding format: H265; H.264

Audio (NVR)
▶ Audio: One-Way, Sound Record
▶ Audio output: HDMI and 1 AUX interface audio output
▶ Decoding format: G.711U; AAC

Storage (NVR)
▶ Hard disk interface: 1 SATA interface
▶ Hard drive capacity: maximum support 16TB
▶ Attention: Hard disk are not included by default.

Recording & Playback (NVR)
▶ Recording mode: scheduled recording, alarm recording
▶ Playback mode: regular playback and APP playback
▶ Backup mode: regular backup

Network Management (NVR)
▶ WiFi CONNECTION. PLUG & PLAY.
 ▶ No Wiring, No Network Configuration, and it can be used when is on
▶ WiFi: 2.4Ghz, only for SriHome standard camera connection
▶ WAN: RJ45 network interface
▶ Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.

Independent Networking (NVR)
▶ Can be use offline
▶ The video recorder and the wireless camera form an independent network, and the video can be monitored without a router

Alarm Mode (NVR)
▶ Alarm mode: motion detection alarm, humanoid detection alarm
▶ Alarm reminder: APP push, alarm whistle

External Interface (NVR)
▶ Network interface: one RJ45 network interface
▶ USB interface: 2 USB2.0
▶ HDMI interface: 1
▶ VGA interface: 1
▶ Audio interface: 1 AUX audio output interface
▶ Power interface: 1 DC 12V 2A (5.5*2.1*10)

App (NVR)
▶ Support SriHome APP, IOS and Android remote access
▶ It had no limit on how many user you want to share the cctv system with.

Camera (5MP)
▶ Model: IPC056
▶ Multi-core high-speed processor
▶ 1/3 inch, 5 million high-definition color CMOS sensor
▶ Compression format: H.265
▶ Lens parameters: Focal length: 4mm, 5 million pixels
▶ Viewing angle: Field of view: D 110 H 80 V 58
▶ Resolution: 1920P(2560*1920), VGA(480*360)
▶ Frame frequency: 15 frames
▶ IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

IP66 Waterproof (Camera)
▶ Rainproof, Weatherproof. Suitable for both Indoor & Outdoor Used.

Audio (Camera)
▶ Built-in microphone and speaker, supports two-way voice
▶ Protocol: G711

Night Vision (Camera)
 ▶ Alarm mode: The default is black and white night vision, when a human figure is detected, the white light is turned on
▶ White light mode: Working period: 17:00~8:00, turn on the white light, full color night vision, adjustable brightness
▶ Infrared mode: Turn off the white light and switch to normal night vision

Alarm Mode (Camera)
▶ Alarm: motion detection alarm, humanoid alarm
▶ Siren: Alarm whistle can be set
▶ Area detection: Supports customization of motion detection alarm areas to improve alarm accuracy

Wireless (Camera)
▶ Wireless: 2.4G WiFi Technology (only connected to NVS001E/NVS010 host)
▶ Network distribution mode: QR code network distribution, button network distribution

Other (Camera)
▶ Product type: plastic pvc, suitable for indoor and outdoor use
▶ Power adapter: USB 5V 1A, type-c connector interface
▶ Working temperature: -10°C ~ 50°C
▶ Weight: Net weight 230 grams (actual weight shall prevail)
▶ Body size: 78*66*75mm (length x width x height)

Easy Setup With After-Sales Support
▶ Clear User Guide & Setup Video Included
▶ After Sales Support Through Live Chat & WhatsApp

What Is In The Box?
1️⃣ 1x NVR WiFi 8CH
2️⃣ 4x Camera WiFi
3️⃣ 5x Power Adapter
4️⃣ 1x Mouse
5️⃣ 1x Lan Cable
6️⃣ 1x Screws Pack
7️⃣ 1x Manual
